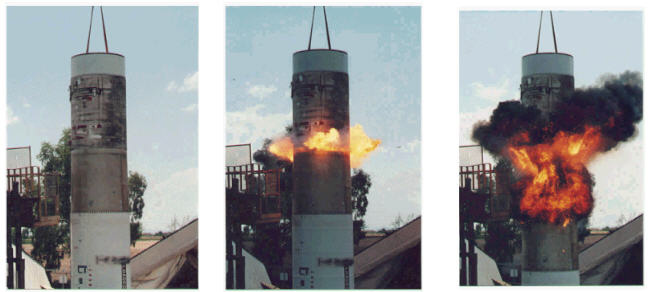

 Figure 1.  Launch Vehicle Stage Separation Test
The source device is linear shaped charge.
 INTRODUCTION

Mechanical shock pulses are often analyzed in terms of shock response spectra. The shock response spectrum assumes that the shock pulse is applied as a common base input to an array of independent single-degree-of-freedom systems. The shock response spectrum gives the peak response of each system with respect to the natural frequency. Damping is typically fixed at a constant value, such as 5%, which is equivalent to an amplification factor of Q=10.

The shock response spectrum is particularly suited for analyzing pyrotechnic shock. It may also be used for evaluating classical pulses, such as a half-sine pulse.
This page offers tutorials which explain the shock response spectrum, as well as software tools for implementing this function.
 Dear Guest,
Writing tutorials and maintaining a website are expensive endeavors. I need your help to continue this effort. Your subscription will allow me to continue this site and to add new materials.

The software and tutorials require a username and password which are given by subscription. The subscription instructions are given below.
The subscription entitles the user to download all of the items on this page, as well as other Vibrationdata pages.
http://www.vibrationdata.com/subscribebutton.jpg

Thank you for your support.
Sincerely, Tom Irvine
Email: tom@irvinemail.org

Other Vibrationdata Pages: HomeTutorials | Search

CD DISK

As an alternative, guests may purchase a CD disk containing all of the downloadable files on the Vibrationdata website. CD Offer



SRS Algorithm

Introduction to the Shock Response Spectrum:    srs_intr.pdf
A digital recursive filtering relationship is developed from the convolution integral.
Derivation of the Filter Coefficients for the Ramp Invariant Method as Applied to Base Excitation of a Single-degree-of-Freedom System: ramp_invariant_base.pdf
K. Ahlin, Shock Response Spectrum Calculation - An Improvement of the Smallwood Algorithm:  Ahlin_SRS.pdf
Kelly and Richman, Principles and Techniques of Shock Data Analysis: SVM-5
Tustin and Hieber, Understanding and Measuring the Shock Response Spectrum: Tustin_SRS.pdf
Understanding the Use and Applications of the Shock Response Spectrum Method: SRS_method_DP.pdf

Methods for Converting a Power Spectral Density to a Shock Response Spectrum: psd_srs.pdf
Tuma & Koci, Calculation of the Shock Reponse Spectrum: TumaSRS_dm09.pdf
SRS Algorithm Limitations for a Rectangular Base Input:  SRS_rectangular_limit.pdf
A Digital Recursive Filtering Method for Calculating the Base Input for a Measured Response Acceleration:  DRFR_base_accel.pdf

Matlab script:  decon_arbit.m

A Digital Recursive Filtering Method for Calculating the Applied Force for a Measured Response Acceleration:  DRFR_applied_force.pdf

Matlab script:  decon_arbit_force.m

Amplitude Metrics

The Pseudo Velocity Shock Response Spectrum: pseudo_velox.pdf
Relative Displacement & Absolute Acceleration: srs_relative_displacement.pdf
Tripartite Shock Response Spectra Plots: tripartite.pdf
Matlab script: srs_tripartite.zip

dB/octave Calculations for Log-Log Plots:  dB_octave.pdf

SRS Test Specifications

Equivalence Methods for Shock Testing: equivalence_methods_shock.pdf
T. Baca, Alternative Shock Characterization for Consistent Shock Test Specification: alternative_shock.pdf
Commercial Testing using the Shock Response Spectrum:  srs_comm.pdf
Corresponding Synthesized Time History: synthesis.txt
An Alternative Method of Specifying Shock Test Criteria: NASA_TM_08_215253.pdf
R.C. Ferebee's Presentation:  Ferebee_shock.pdf

Synthesis & Waveform Reconstruction

Shock Response Spectrum Synthesis via Wavelets: srs_syn.pdf
Waveform Reconstruction using Wavelets: wavelet_reconstruction.pdf

Waveform Synthesis of the Pegasus Drop Transient for Shaker Table Shock Testing: Pegasus_Drop_Synthesis.pdf
Corresponding Time History Files: Drop_Syn.zip
Shock Response Spectrum Synthesis via Damped Sinusoids: srs_syn_dsine.pdf

Seismic Synthesis for Shaker Testing and Modal Transient FEA

Shaker Table Seismic Testing of Equipment using Historical Strong Motion Data Scaled to Satisfy a Shock Response Spectrum
quake_syn.pdf
Matlab Scripts:
waveform_reconstruct.m
wavelet_scale_SRS_add.m
werror2.m
wqsrs.m
progressbar.m
th_from_wavelet_table.m
Wavelet Tables:
el_NS_wavelet_table.out
wavelet_40.txt
Time History:
accel_40.txt

Classical Shock Tutorials, Base Excitation & Initial Conditions,
SDOF Systems

Integrating the Acceleration Half-Sine Pulse: halfsine.pdf
Half-Sine Pulse Synthesis Via a Wavelet Series for Shaker Table Shock Tests: half_sine_synth.pdf
Matlab scripts: half_sine_synth.m & wgen_hs.m
Response of a Single-degree-of-freedom System Subjected to a Unit Step Displacement: unit_step.pdf

Response of a Single-degree-of-freedom System Subjected to a Classical Pulse Base Excitation: sbase.pdf

Response of a Single-degree-of-freedom System Subjected to a Versed Sine Pulse Base Excitation: sbase_versed_sine.pdf

Response of a Single-degree-of-freedom System Subjected to a Terminal Sawtooth Base Excitation: terminal_sawtooth.pdf

The Response of a Single-degree-of-freedom System Subjected to a Wavelet Pulse Base Excitation: sbase_wavelet.pdf
Dynamic Load Factors for Classical Pulses, Charts: DLF_classical.pdf
The Fourier Transform of a Half-Sine Pulse: hs_fourier.pdf
Transportation Shock Due to Speed Bumps and Road Obstacles: bump.pdf

Partial Fractions in Shock and Vibration Analysis: partial.pdf
See also: Laplace Transforms in Shock & Vibration Analysis

Classical Shock Tutorials, Base Excitation & Initial Conditions, Two-DOF Systems

The Response of a Two-degree-of-freedom System Subjected to a Half-Sine Base Input Pulse: twodof_halfsine.pdf

The Response of a Two-degree-of-freedom System Subjected to a Wavelet Pulse Base Excitation:  twodof_wavelet.pdf
Classical Shock Tutorials, Applied Force, SDOF & Two-DOF Systems

Response of a Single-degree-of-freedom System Subjected to a Unit Step Force: force_unit_step.pdf

Matlab script:  unit_step_force.m
Response of a Single-degree-of-freedom System Subjected to an Impulse Force: force_impulse.pdf
Matlab script: impulse_force.m
Response of a Single-degree-of-freedom System Subjected to a Terminal Sawtooth Applied Force: terminal_sawtooth_force.pdf
Response of a Single-degree-of-freedom System Subject to a Half-Sine Applied Force: half_sine_force.pdf

Matlab script: half_sine_force.m

Response of a Two-degree-of-freedom System Subject to a Half-Sine Applied Force: two_dof_half_sine.pdf

Matlab script:
Matlab script:  twodof_half_sine_force.m

See also: Laplace Transforms in Shock & Vibration Analysis

Multi-Degree-of-Freedom Shock & FEA Shock

Shock Response of Multi-degree-of-freedom Systems:  mdof_srs.pdf
Methods for Combing Modes: combining_modes_SRS.pdf
Shock Response Spectrum Analysis via the Finite Element Method: FEA_shock.pdf
Nastran File: srs_plate_frf_4k.nas
Additional Files: FEA_Shock_files.zip
Shock Response Spectrum Synthesis via Damped Sinusoids: srs_syn_dsine.pdf

Impact & Drop Shock & Product Shock Fragility

See Impact Shock Page

Papers By David O. Smallwood
Sandia National Laboratories

Time History Synthesis for Shock Testing on Shakers: th_syn.pdf
An Improved Recursive Formula for Calculating Shock Response Spectra: DS_SRS1.pdf

The Shock Response Spectrum at Low Frequencies: low_srs.pdf
A Family of Transients Suitable for Reproduction on a Shaker Based on the cos^m(x) Window: cosine_transients.pdf

Pyrotechnic Shock, NASA & Military Documents

MIL-STD-810F, Method 517 Pyroshock: MIL810F_pyroshock.pdf
MIL-STD-810G, Method 517.1: MIL810G_pyroshock.pdf
The Proposed NASA Pyroshock Test Criteria Standard: NASA_pyro2.pdf
NASA Pyrotechnic Shock Design Guidelines Manual: NasaPyro.zip
By Kacena, McGrath, and Rader.
NASA Pyroshock Test Criteria, by D. Kern: NASA-HDBK-7003
Pyroshock Data Acquistion and Analysis for U/RGM-109D Payload Cover Ejection Tests, NWC TP 6927, By Allan Piersol: Pyro_Data_AQ.pdf
NASA SP-8051 Solid Rocket Motor Igniters: sp8051.pdf

Pyrotechnic Shock Attenuation, Material & Joints

NASA Pyrotechnic Shock Design Guidelines Manual: NasaPyro.zip
By Kacena, McGrath, and Rader.

Martin Marrietta, Joint & Distance Attenuation: mm_shock.pdf
Attenuation of Longitudinal Shock Waves in a Rod: longitudinal_shock_att.pdf
Matlab Script: beam_long_initial_disp.m
Attenuation of Bending Shock Waves in a Beam: beam_shock_att.pdf
Matlab Script: beam_bending_initial_disp.m

Pyrotechnic Shock Simulation in the Test Lab

High G Pyrotechnic Shock Simulation Using Metal-to-Metal Impact: Bai.pdf
By Monty Bai and Wesley Thatcher
The Controlled Response of Resonating Fixtures Used to Simulate Pyroshock Enviroments, by Neil Davie: resonating_fixture.pdf
Summary of Testing Techniques, by Dan Powers: Powers_test.pdf
Multi-Degree-of-Freedom Pyrotechnic Shock Simulation, Slide Presentation, by Smith and Hollowell: mdof_sim.pdf
Comparison of Response from Different Resonant Plate Simulation Techniques: Morse_test.pdf
High Frequency Mechanical Pyroshock Simulation for Payload Systems, by Bateman, et al: payload_SRS.pdf
Pyrotechnic Shock Testing: Pyrotechnic Shock Testing: Real Test Lab Experiences at EBA&D, by Keon (slide presentation): EnsignBickford.pdf
Initial Velocity Excitation of the Longitudinal Modes in a Beam for Pyrotechnic Shock Simulation: iv_rod_revC1.pdf
Kolaini & Fernandez, JPL Tunable Beam Pyroshock Simulation System:  JPL_tunable_beam.pdf
J. Tiulaer, B. Allen, J. Maly, An Alternative to Pyrotechnic Testing for Shock Identification: CSA2007_pyrotechnic.pdf
Matlab script: beamvs.m

Pyrotechnic Shock Aliasing

The Need for Analog Anti-aliasing Filters in the Pyrotechnic Shock Testing of Avionics Components: AA_Filter_Pyro.pdf
Potential Aliasing in Pyrotechnic Shock Data: Numerical Experiments: aliasing_numerical_experiments.pdf
NASA Letter:  NTS_Pyroshock_NASA_KSC_Letter.pdf

Pyrotechnic Shock, Source Levels

Motor Ignition & Stage Separation Source Shock Library: source_shock.pdf
Release Nut Pyrotechnic Shock Energy Scaling: release_nut_energy_scaling.pdf
V-Band Source Shock Scaling: Vband_Scaling.pdf

Shock, Stress

Gaberson and Chalmers, Modal Velocity as a Criterion of Shock Severity, Shock and Vibration Bulletin, Naval Research Lab, December 1969: modal_velocity.pdf

Shock and Vibration Stress as a Function of Velocity: sv_velocity.pdf

Pyrotechnic Shock, Other

Measuring and Analysis of Pyrotechnic Shock: pyroshoc.pdf
Submitted by John Eriksson and Mattias Hansson, Chalmers University of Technology, Sweden. Vibrationdata student paper contest, Spring 2000.

V. Bateman, The Validation of Pyroshock data:  24_Besta_Bateman_website.pdf
Pyrotechnic Shock Flight Failures By C.J. Moening (three versions):
Moening.pdf
 , Moening.doc
Pyrotechnic_Shock_Failures_Moening.pdf
Mechanical Shock from Frangible Joints, by V.R. Paul: frangible_joints.pdf
Pyrotechnic Shock Structural Response, by R.G. Merritt: Merritt.pdf
Structural Response to an Applied Point Force in Terms of Mechanical Impedance: shock_impedance.pdf

Saturation Removal

A Mean Filter Method for Removing Saturation from Pyrotechnic Shock Pulses: mean_filter_saturation_removal.pdf
An Improved Mean Filter Method for Removing Saturation from Pyrotechnic Shock Pulses: improved_sat_remove.pdf
Data Sample: pyro_sat.txt
Software: sat_remove5.exe

V-band Pyroshock

V-Band Separation Shock Characteristics, by K.Y. Chang: V_Band.pdf
V-Band Source Shock Scaling: Vband_Scaling.pdf
V-Band Structural Analysis: Vband_Structural Analysis.pdf

Dynamic Design Analysis Method (DDAM)

Moved to:  Shipboard Shock & Vibration

Seismic Shock

Moved to: Seismology and Earthquake Engineering

Sine, Random and Shock Equivalence

A Method for Using an Equivalent Shock Specification to Cover a Pure Sine Vibration Requirement shock_sine.pdf
Matlab script: shock_sine.m
The Equivalent Sine of an SRS: equivalent_sine_SRS.pdf
Shock and Random Vibration Equivalence: shock_vib_eq.pdf

Avionics & Circuit Board Response to Shock

Designing Electronics for Pyrotechnic Shock: Luhrs.pdf
By Henry Luhrs
Shock & Vibration Fatigue Criteria for Electrical Components: ec_fat.pdf
Shock Analysis of Avionics Mounting Bolts: shock_bolts.pdf
Crystal Oscillator Mounting for Shock and Vibration: crystal_mount.pdf

Low-Cycle Shock Fatigue of Electronic Components:  low_cycle_fatigue.pdf

Qualification Shock Testing for Reusable Avionics Components:  shock_reuse.pdf
