Welcome to Vibrationdata Animation Page


By Tom Irvine
Email: tomirvine@aol.com
 Click on each Image or the corrsponding link to start the animation.

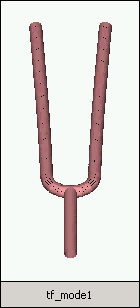

 Tuning Fork Vibration Modes




f1 = 440 Hz



f2 = 693 Hz



f3 = 1590 Hz

tf_mode1.avi
tf_mode2.avi
tf_mode3.avi




Spring-Mass Single-degree-of-freedom System


Mass m = 0.71 kg
Stiffness k = 350 N/mm
Natural Frequency = 111.7 Hz
sdof_fna.avi

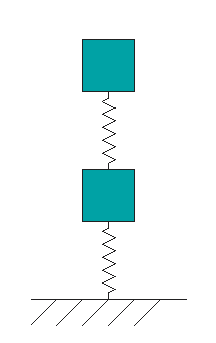

 Spring-Mass System with Two degrees-of-freedom

Each mass = 0.71 kg
Top spring = 175 N/mm
Bottom spring = 350 N/mm

Mode 1
f1 = 60.5 Hz

tdofm1.avi


Mode 2

f2 = 146 Hz

tdofm2.avi


Bending Modes of a Fixed Circular Plate
fixed_circular_plate_mode1.avi
fixed_circular_plate_mode2.avi
fixed_circular_plate_mode3.avi
fixed_circular_plate_mode4.avi
Response of SDOF Systems to Half-sine Pulse: HS_SRS.avi
SDOF Response to Steady-State Sinusoidal Base Excitation. Each system has 5% damping.
100 Hz system excited by 50 Hz vibration: 100_by_50.avi
100 Hz system excited by 100 Hz vibration: 100_by_100.avi
100 Hz system excited by 200 Hz vibration: 100_by_200.avi
